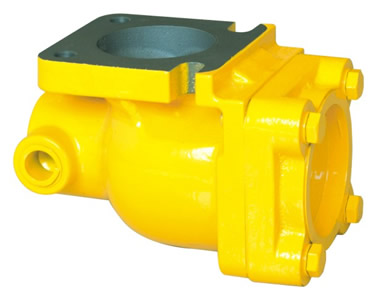

V_and VS_series piston valves
The V_series mechanically actuated piston valves are available in 2" throngh 4" sizes and are designed for mounting on the meter outlet to provide tight shutoff vith smooth and easy operation regardless of system line pressure.Valves may be manually operated or connected via a mechanical linkage to a preset counter on the meter for single stage closure,or two-srage closur to eliminate hydrarlic shock.Valves are indexable in 90 increments for up,down,or side facing outlet.
Model |
Material |
Used with meter |
Size |
Max.flow rate L/min |
V-50 |
Aluminum |
M-40,M-50,M-50H |
1 "and 2 " |
550 |
V-80 |
M-80,M-80H |
3 " |
1136 |
V-100 |
M-100,M-100H |
4 " |
2271 |
![](/admin/eweb/UploadFile/20132682122114.jpg)
K Series Air Activated Differential Check Valves
The K-Series air activated check valves are installed on the outlet side of the meter and are designed to stop the flow of liquid whennever air is present to ensure accurate measurement.
Model |
Material |
Used with meter |
Size |
Max.flow rate L/min |
K-50 |
Aluminum |
M-40,M-50,M-50H |
1 "and 2 " |
760 |
K-80 |
M-80,M-80H |
3" |
1136 |
V-50-LPG Differential Valve
The differential valve mounted on the meter outlet and connected at the valve bonnet to the vapor eliminator on the meter with function of to stop liquid flow whenever vapor is present in the system.The valve maintains sufficient pressure to ensure that high-vapor pressure products such as LPG or anhydrous ammonia (NH3)always remain in the liquid state.The valve is spring loaded and designed to fail closed.
Model |
Material |
Used with meter |
Size |
Max.flow rate L/min |
Working Pressure |
V-50-LPG |
Aluminum |
M-40,M-50,M-50H |
1 "and 2 " |
760 |
350PSI |

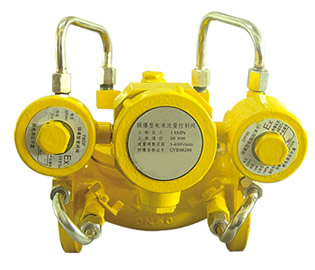

solenoid hydraulic valve
V-50-LPG Differential Valve
Solenoid air check valve
Material:Cast lron
Size:2 ",3 ",4 ",and 6 "
Power:220V 50HZ or 24V |
Solenoid plug valve
Material:Stainless Steel
Size:2 ",3 ",4 ",and 6 "
Power:220V 50HZ or 24V |
