M Series Positive Displacement Flow Meter

Excellent stepless adjusting me chanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction.

Industries
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine ; Paint and varnish ; Petroleum marketing ; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling ; Railroad ; Textile.

Application:
1.        Refined petroleum products;
2.        Aviation gasolines and jet fuels;
3.        A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
4.        Treated waters (deionized, demineralized, and potable);
5.        Chlorinated solvents and general solvent metering;
6.        Acid pH liquids;
7.        Liquefied petroleum gas(LPG);
8.        Crude oil, also for heated and/or viscous liquids;
9.        Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
10.     Herbicide;
11.     Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
12.     Abrasive liquids

Techincal specification:

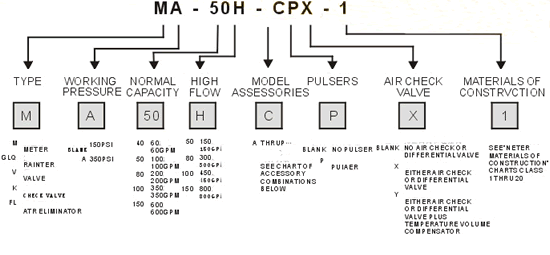

  Model
M-40-1
M-50-1
M-50H-1
M-80-1
M-80H-1
M-100-1
M-100H-1
M-150-1
M-150H-1
  Size
40mm / 1 "
50mm / 2 "
80mm / 3 "
100mm / 4 "
150mm / 6 "and 100mm / 4 " for option
 Flow Range (L/min)
25-250
38-380
55-550
75-750
115-1150
130-300
170-1700
225-2250
300-3000
Volume Per Revolution
0.309L
0.681L
1.839L
5.102L
9.507L
Max.Pressure
10Bar/150PSI
Accuracy
±0.2%
Repeatability
≤0.05%
Standard
Measurement
Liter / US Gallon /IMP Gallon


Package Data
  Model
M-40-1
M-50-1
M-80-1
M-100-1
M-150-1
  Dimension
53×48×53cm
53×48×53cm
58×50×61cm
76×64×72cm
80×65×79cm
  Net Weight
23kg
26kg
40kg
70kg
130kg
  Gross eight
35kg
38kg
55kg
90kg
155kg
Package
1pc/Wooden Case
