PRODUCT -->

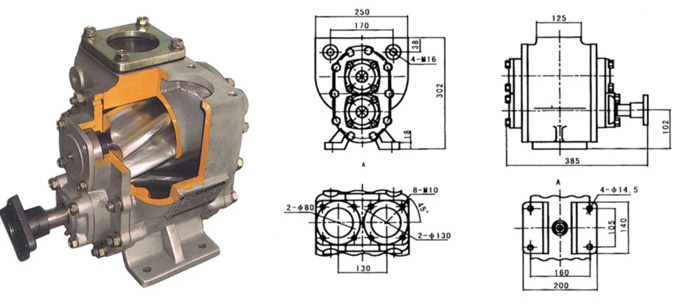

                                                           JY-1000/5A
High-flow Pump

It is used for tank truck, tanker, service stations and filling area. It can be also used in chemistry sector, mines and other industry sectors


Features:

1) It is a gear arc oil pump.
2) Compact, high-flow, high lift ,low noise and strong self-priming capability.
3) Using soft metal as gear-surface to eliminate heat in the gear-surface friction and avoid static convergency, so it is very safe.
4) Used to trasfer noncorrosive liquid without solid granule.
5) JY-1000/5B is another product different from JY-1000/5A. Comparing with JY-1000/5A, it has effective safety equipment. However, their working principles and installation sizes are same.


            Name
               Parameter
Inlet & outlet diameter
                  80mm
Max flow
            1000L/Min
Max output pressure
              0.5Mpa
Rotation speed
            700-1250 r/min
Max lift
                  60m
Permitted suction lift
                     7m
Motor power
                   11kw
Medium viscosity
              5cP-53cP
Temperature
               -30℃-80℃
