◆Semi-trailers

◆Technical Data

Items
Units
Parameter
Name

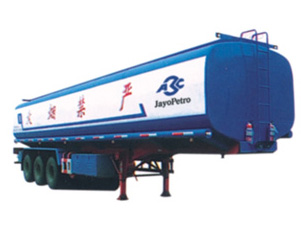

JYHB CL Semi-trailer
Size compartment
mm
Volume effective 35M3
Tank size and shape
11000×2150×1900
(major axis × minor axis × L)
Body internal dimensions
10850×2480×3330
G.V.W
kg
32630
Payload
22000
Mass in working order
10630
wheel base


wheel base
mm
6270+1310
tread
front-wheel
-
rear whee
1840
Tire specification
11.00-20
Number of axles
2
Number of tire
8
Front/Rear axle
-/13T FUHUA
Equipment
Meterial:5mm carbon steel. Flow meter, tankerpiston and bobbin disk can be chosen freely.
Tank can be separated to several unattached small tanks to fill different fuels.
Production cycle
18~20days
Warranty
12monthfrom the date of supply
